Eriez Chip and Parts Conveyors

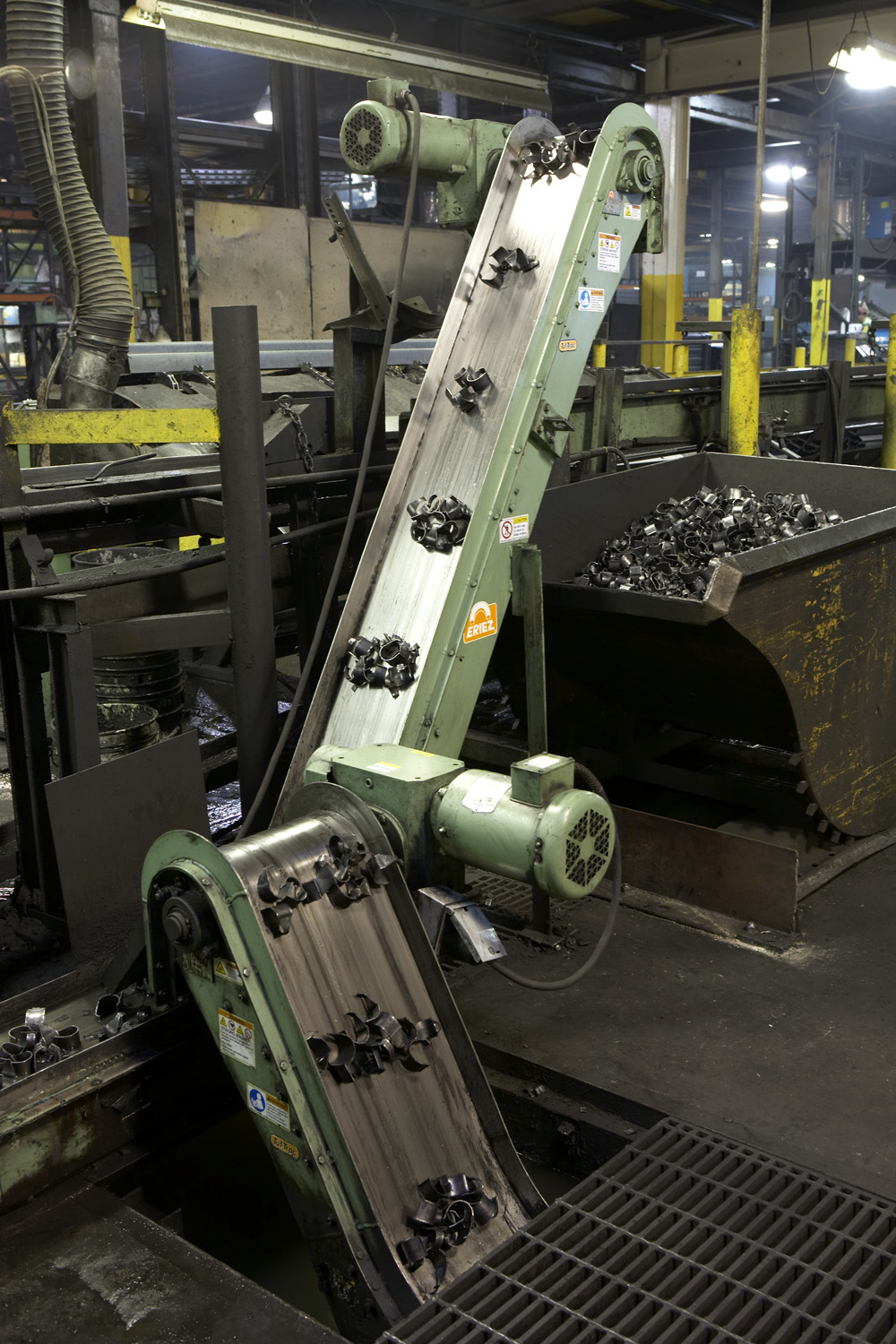

Permanent magnets moving inside a liquid-tight, submersible housing attract, hold and convey ferrous chips, turnings, small parts and stampings.



Magnetic Chip & Parts Conveyors



>>


Eriez Chip and Parts Conveyors

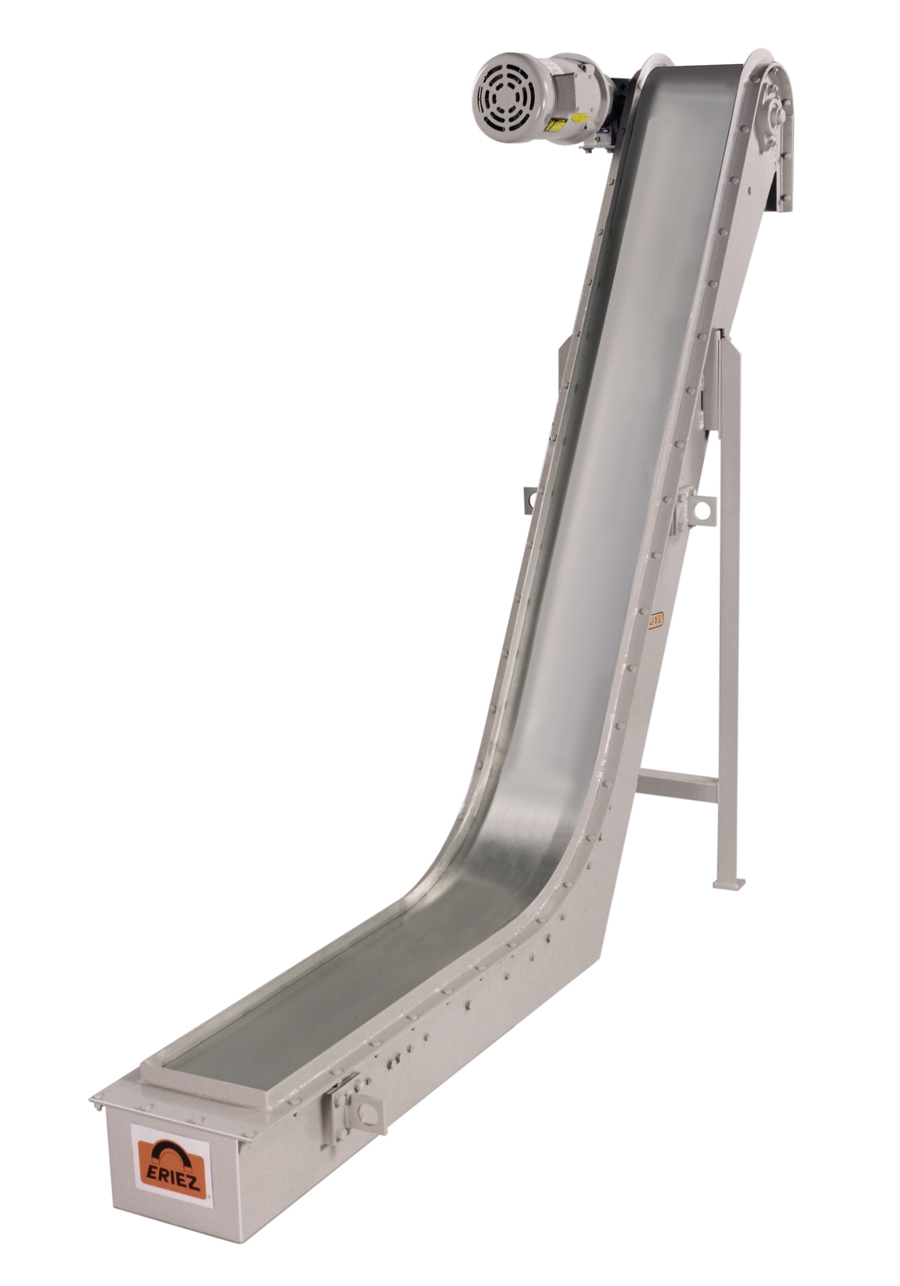

Eriez’ Chip and Parts Conveyors provide a virtually maintenance-free way to move and elevate ferrous materials such as chips, turnings, small parts and stampings. Except for an externally mounted drive motor, the unit is self–contained, and the conveyor mechanism is completely enclosed. There are no moving external parts to jam, break or endanger personnel.

Our most popular models feature a unique internal track system called Tuf-Trac™, designed for low maintenance, quiet operation and long service life.

Features & Benefits:

  • One piece steel housing
  • Submersible
  • Self–cleaning
  • Easily installed
  • Continuous lubrication
  • Virtually maintenance–free

Principle of Operation

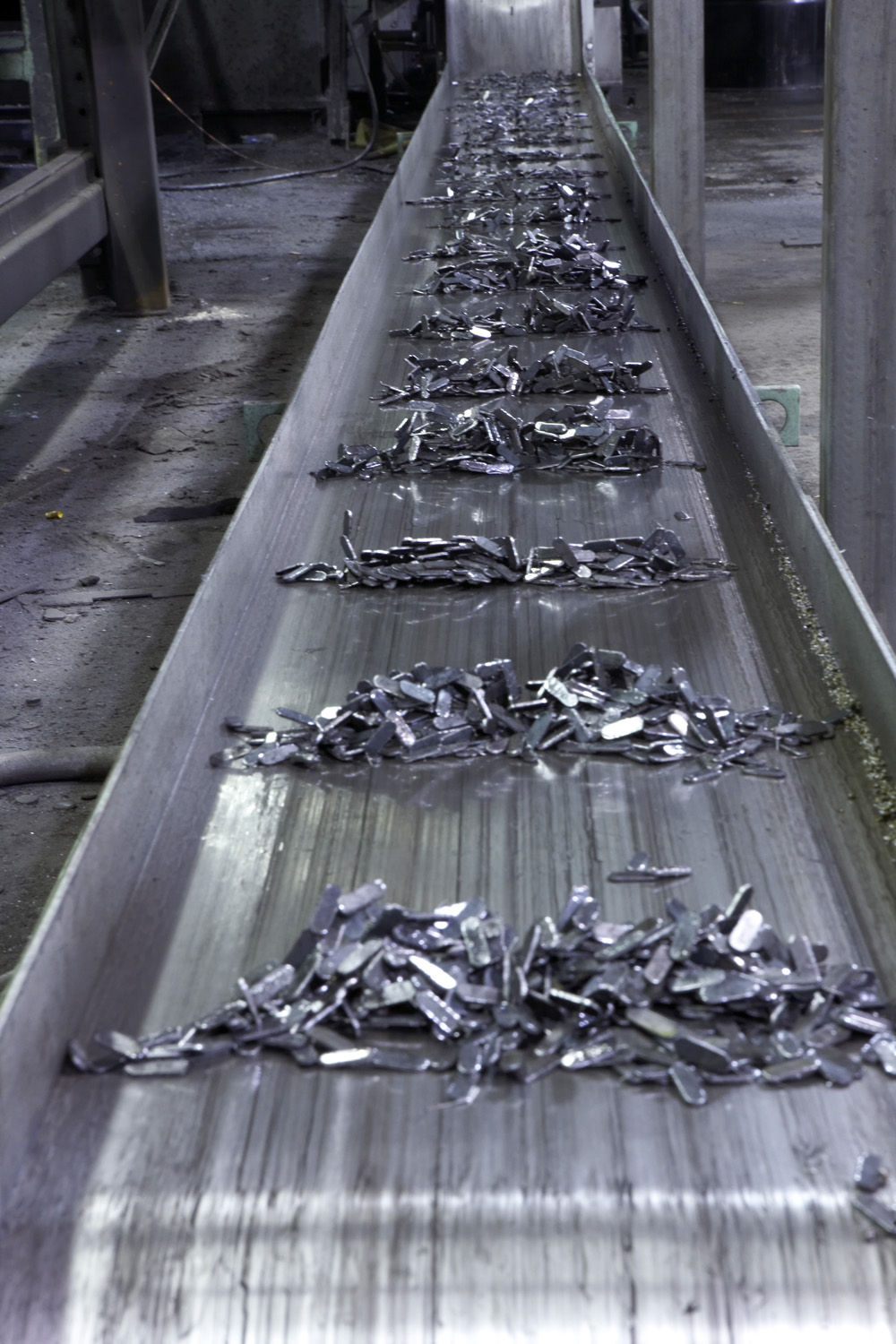

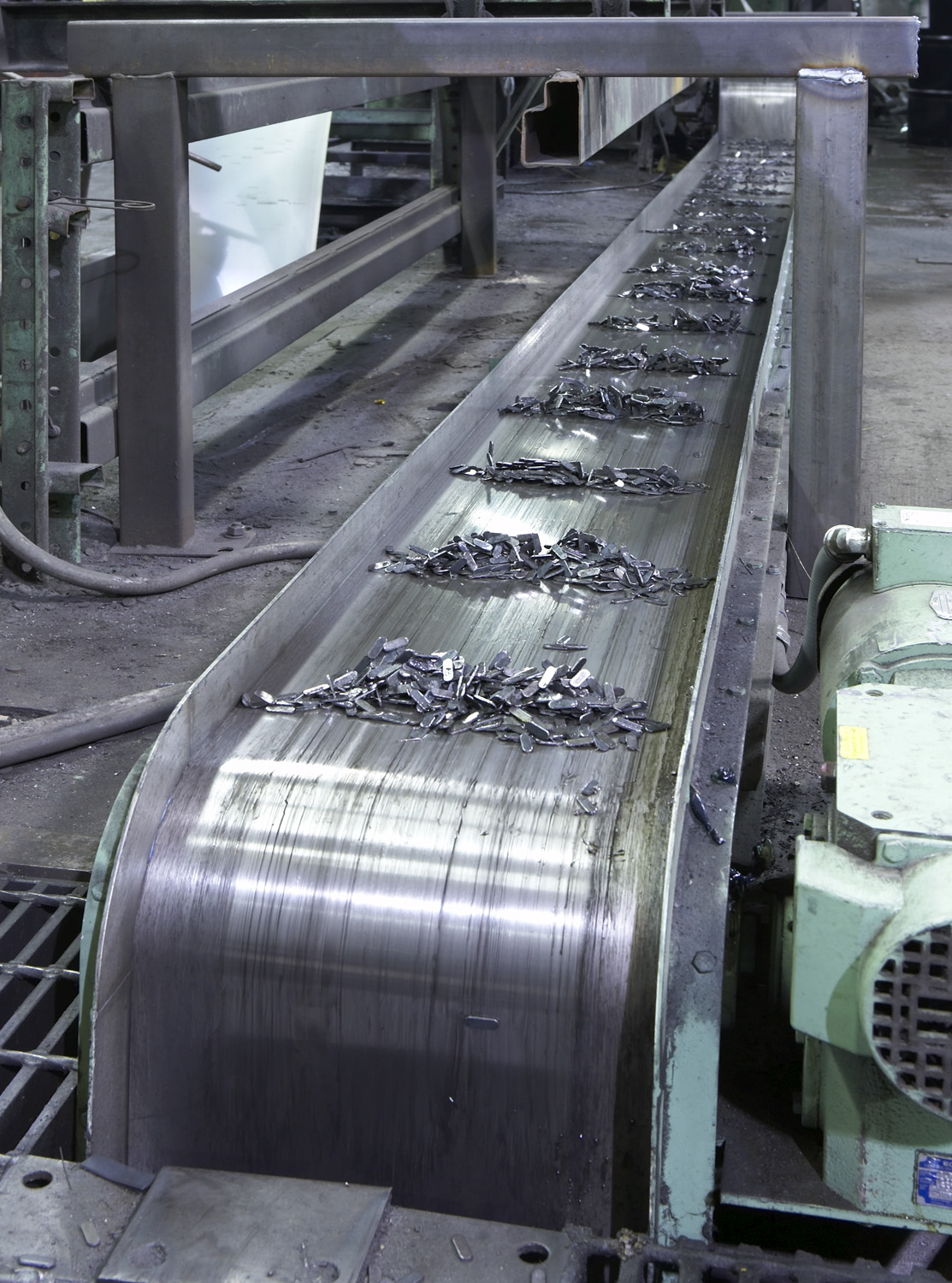

Eriez’ permanent magnet conveyors use a continuous series of powerful ceramic magnets to pick up and glide material along the stainless steel slider plate. Material is then discharged over the head end. Because of their liquid-tight (submerged units) construction, lower conveyor sections can be completely submerged in coolant sumps or tanks. The working face is self-cleaning, and excess fluids drain easily back into the tank.



Construction

All conveyor models are of heavy duty construction to provide years of virtually maintenance-free use. High quality steel and non–magnetic stainless steel are used for the structure, slider plate and magnet assemblies. Conveyor housing construction is entirely liquid-tight (submerged units), and access panels are equipped with gaskets and seals.
