Eriez Vibratory Feeders & Conveyors

Eriez vibratory equipment effectively and efficiently conveys, screens and feeds materials in quantities ranging from a few spoonfuls to tons per hour.

Feeders & Conveyors

Please wait while we gather your results.

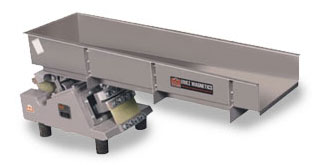

Light and Medium Duty Feeders

Light and Medium Duty Feeders

With their totally enclosed magnetic drive, Light and Medium Duty Feeders are perfect for feeding practically any bulk material—from micron size to bulk chunks.  They feature solid state controls, which operate the state-of-the-art feeders with “watch like” precision.  Custom designs are available and may include multiple drives, enclosed trays or screens.  Additionally, a wide variety of standard and special trays are available.

Eriez - Heavy Duty Feeders

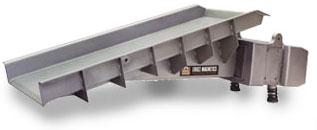

Heavy Duty Feeders

Our Heavy Duty Electromagnetic Vibratory Feeders are ideal for handling coal, ore, aggregates, slag—or any other situation where high volume, controlled feeding is required.  With their energy-saving intermeshed AC/permanent magnet drive, these powerful units are the workhorses in Eriez' huge stable of Vibratory Feeders and Conveyors.  They are available in nine models with capacities to 850 tons (765 MT) per hour*. (*Capacity is based on sand weighing 100 pounds per cubic ft. (1.6 metric tons per cubic meter)

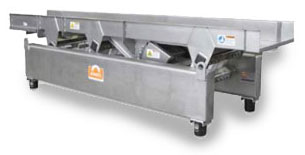

Vibratory Conveyors

Simple and rugged Mechanical Conveyors from Eriez provide controlled movement of large volumes of bulk materials.  They are available in single and two-mass vibrating systems which are excited by a motor-driven eccentric shaft.  These vibrating machines feature a compact, straight line design that presents a low profile, yet enables easy maintenance. Minimum headroom is required.

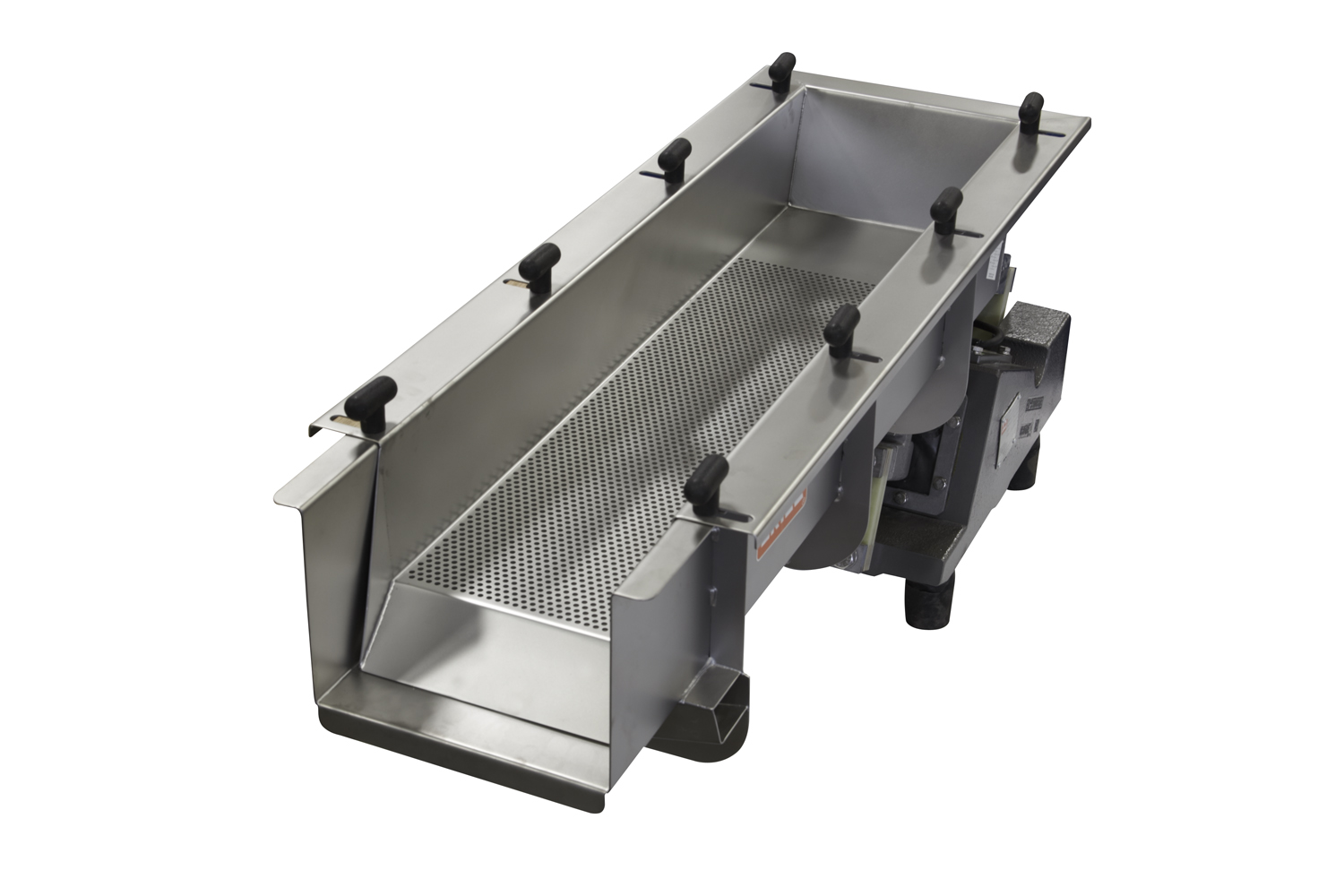

Vibratory Screeners

Vibratory Screeners

High capacity Vibratory Screeners are designed for liquid/solid separation and wet or dry classification.  These easy-to-operate gyratory units allow trouble-free and quick tuning to specific feed rates, product and separation requirements.  Benefits are many, including long screen life and no damping under loads.  Inline screeners are also available.

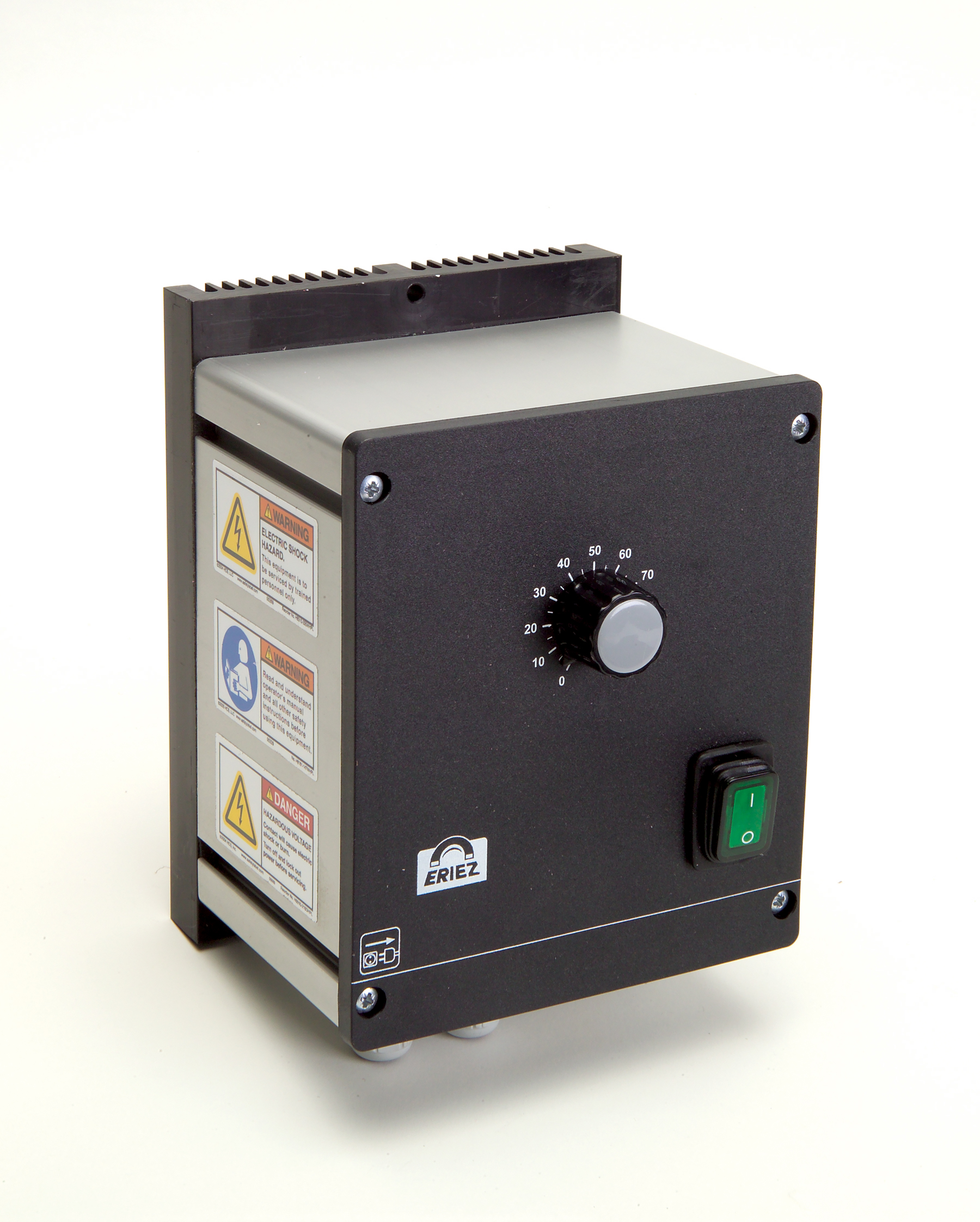

Vibratory Controls

Designed to provide a precise amount of vibration for vibratory feeders, Eriez offers a line of solid state Feeder Controls with state-of-the-art electronics at competitive prices.

Eriez - Bin Vibrators

Bin Vibrators

Eriez Bin Vibrators are used in applications ranging from the tiniest hopper to huge bunkers, providing efficient and economical movement of hard-to-handle bulk materials.  Electric Rotary Vibrators (ERVs) serve as a powerful, reliable and effective flow-aid for hoppers and chutes, or a driving force for vibratory screeners, feeders and conveyors.

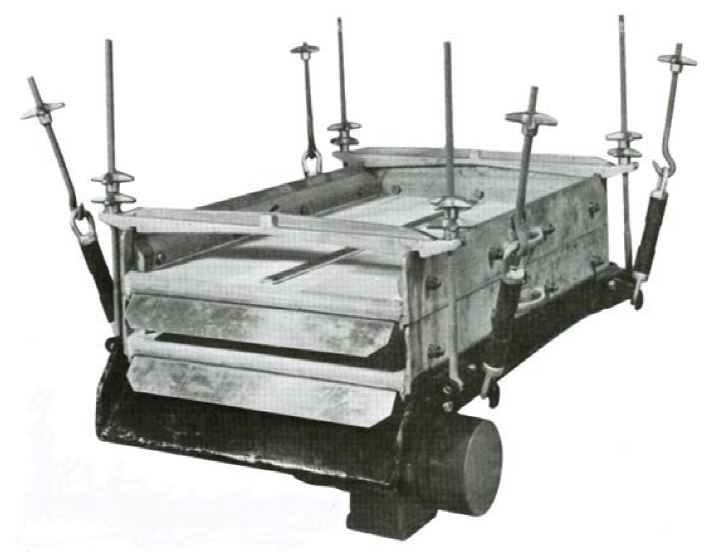

Vibratory Wet Sifting Machine

Vibratory Wet Sifting Machine

Incorporating stainless steel lawn screen cloth in aluminum frames, this machine has been developed principally for use in the ceramics industry for grading liquid slip used in the production of pottery and paper.

Pneumatic Vibrators

Oscillating piston design results in high shock forces generated for moulding tables, small hoppers, compacting tables and transfer chutes
